STREETWISE - Creating an automated personal mobility solution for London commuters

Location: United Kingdom, Client: Innovate UK

Published on 04 September 2018

Share this article:


TRL was a key member organisation of the StreetWise consortium, funded in part by Innovate UK, the UK’s innovation agency.

StreetWise aimed to develop and demonstrate the technology, safety validation methods, insurance and service models required to deliver an automated personal mobility solution, targeted at replacing the urban commuter car. The project ran for approximately two years, with the final live demonstrations taking place late 2019.

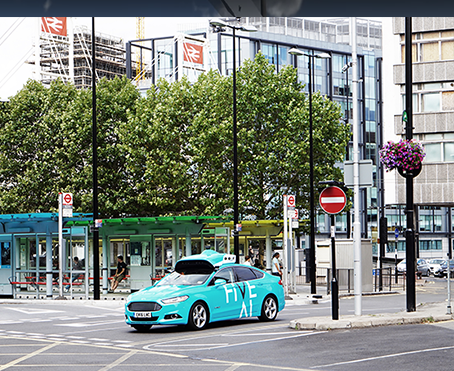

Led by FiveAI, a UK-based company focused on creating a fully automated, shared transport service for Europe’s cities, the StreetWise consortium also included transport industry innovators Torr Vision Group (part of the University of Oxford), McLaren Applied Technologies, Direct Line Group and Transport for London

The challenge

Automated vehicles are central to the UK government’s industrial strategy because of the potential they represent for addressing several challenges facing urban areas, including congestion, vehicle emissions, commuting time and costs and road traffic casualties.

Before automated vehicles can be safely and successfully integrated into urban road networks, in-depth track and real-world testing on public highways must be carried out.

To meet the necessary legal requirements to conduct testing on public highways and secure insurance for the trial, a robust safety case must be developed.

Our approach

TRL’s role in the project was to develop the Safety Case for on-road trials of automated vehicle technologies, based on TRL’s extensive experience with developing safety cases for automated vehicle trials. The Safety Case is required to help manage and reduce potential risks involved in trialling these technologies on the public road. A carefully managed approach to testing in real-world environments is an essential part of developing automated driving systems for deployment in road vehicles.  The abridged version of the safety case can be found here.

TRL also took responsibility for analysing UK collision data in preparation for defining priorities for simulation-based testing. TRL then curated a database of test scenarios. Out of this activity, TRL develoed a proof of concept for a scenario database that could facilitate the testing and certification of automated vehicles for use on UK roads.

To facilitate the development of the test scenario database, the project had to create a Scenario Description Language (SDL), which incorporates definitions of both static (i.e. road geometry) and dynamic (vehicles, cyclists, pedestrians etc.) actors. The database could potentially be used to test and validate the performance of automated vehicles, in particular ensuring that they respond accurately and appropriately to a typical range of scenarios encountered on UK roads.

The results

The STREETWISE project originally aimed to develop and demonstrate an automated system, which would be globally-competitive, safe, secure and validated to the standard required for a major insurer to underwrite it. The project hoped this would lead to commercial service implementation, providing cities like London with a clean, safe, convenient and affordable commuting alternative.

Many facets of the project proved to be far more demanding than anticipated. Trials using members of the public did take place in London, providing ample proof of concept of the automated system. Great headway was made in understaning how to validate the system. But the ambition to develop a blueprint for a commercial service was set aside in favour of achieving the technical goals.

Streetwise trials - Findings report

Streetwise trials - Technical report


Demonstrating Virtual Validation of Automated Vehicles

At the end of the project, there was no final report published, instead a series of presentations were given covering what had been achieved, and examining its relevance. The team at TRL had focussed on the question of How to validate the safey of new ADAS technologies. The approach TRL took was to develop a technique called "virtual validation".

Virtual Validation is a method to collect objective evidence of the impact of the decision making that is built into the “brain” of an AV system. It uses a powerful combination of 3-D simulation of an AV, injected into a simulated environment, to see how the vehicle behaves when presented with precise conditions known to have caused an incident in the real world. With that data, it then becomes possible to benchmark the AV against the expected behaviour of a human driver, and determine whether an AV’s choices and reactions would result in a better outcome.

TRL's presentations are included here, in four parts (approx 10 minutes long each part).

  • Firstly, we present a demonstration of a virtual environment and how it works with an injected virtual version of an automated system
  • Secondly we showcase the levels of detail possible, the integrity of the data possible, and the benefits of current capability, by demonstrating simulation of edge cases - using data captured from real collisions
  • Thirdly, we look at the multiple tools to be integrated, and techniques required to generate evidence form a simulated event, and we touch on the implications for AV system developers
  • Fourthly, the presentation explores how we devised a method to "score" the behaviours of the AV system, and the implications of this approach for testing at scale.
